Grabo Ottovac Battery Operated Vaccuum Suction Lifter (200kg)
If you are planning to buy bulk quantities, contact us for discounted prices as well as exclusive and priority delivery options.
0330 1281212
How Much Can the OTTOVAC lift?
- The way you are carrying the material.
- The type of material you are carrying.
 |
Perpendicular Hold
|
Parallel Hold
|
|---|---|---|
| Glass | 440Lbs (150 kg) | 440Lbs (150 kg) |
| Ceramic Tiles | 440Lbs (150 kg) | 440Lbs (150 kg) |

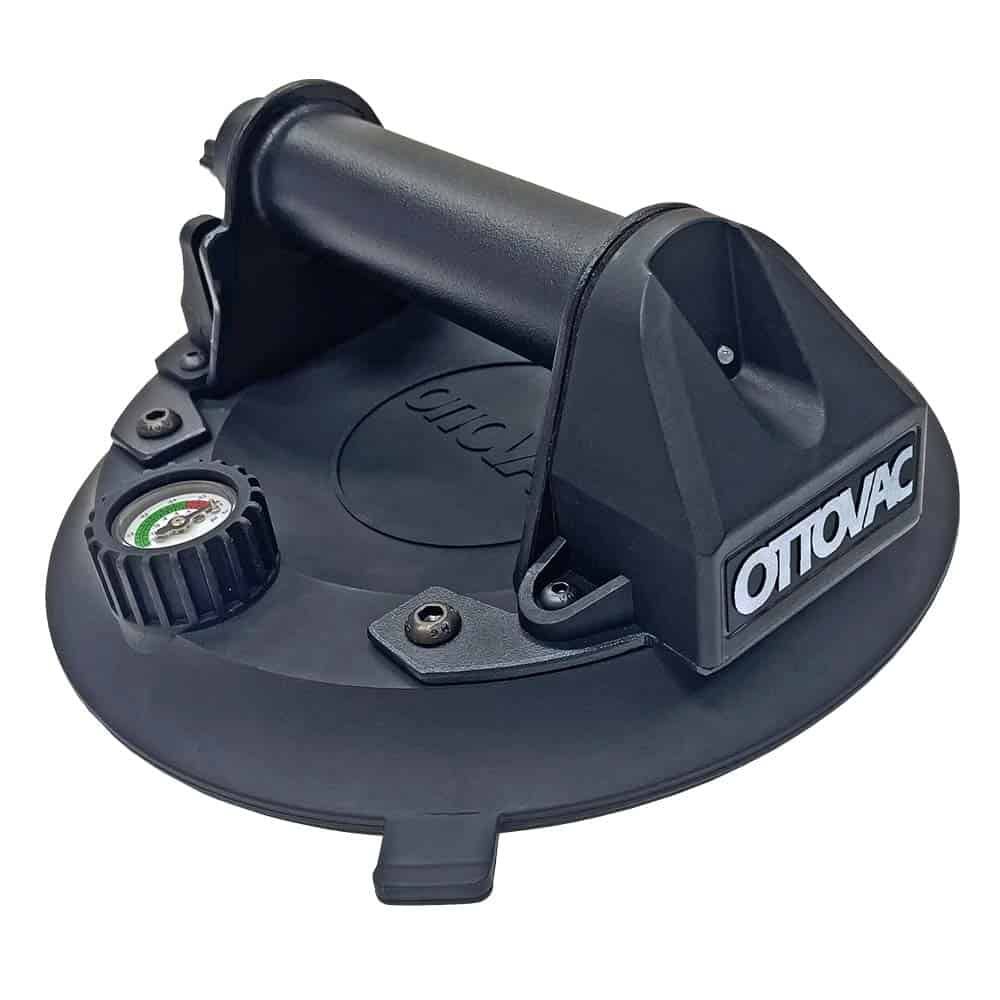

Grabo Ottovac Battery Operated Vaccum Suction Cup
The Ottovac is the latest innovation from the makers of GRABO. A robust, battery-powered suction cup, perfect for glass and other smooth surfaced materials.
Features:
- Battery powered, no need to finger pump to gain suction.
- Battery suitable for 1500 power-ups
- Automatic on/off switch to maintain suitable suction while lifting.
- Gauge to indicate vacuum pressure
- Built tough with ergonomic steel handle
- Strong rubber seal that leaves no marks on the surface.
The Ottovac by GRABO is perfect for carrying many types of glass, including windowpanes, glass partitions, windscreens, and other smooth materials such as plastic, metal, painted wood, marble and tiles.
With just a touch of a button the Ottovac powers up creating a strong seal in a matter of seconds. The suction cup consists of a highly durable ergonomic steel handle and a robust rubber seal that leaves no marks on the surface.
A critical safety feature of the Ottovac is that in the event of a loss of vacuum, it has an integrated sensor that automatically repumps. This ensures the materials can be transported without any risk of losing suction.
The Ottovac is a battery-powered suction cup, meaning you don’t have to pump manually to get your desired seal. This leaves your hands completely free to handle the material safely.
Surfaces can be used on: Arcylic, Ribbed Glass, Finished Wood, Marble
Applicable Surface TypePeak/valley heights less than 0.1” (3mm), arc less than 5°
| Model/SKU | OTTOVAC-V1(OV-V1) |
|---|---|
| Battery | Alkaline AA 1.5 V (x4) |
| Working voltage | 6 V |
| Rated power | 6 W |
| Working cycle | 1500 ON-OFF cycles of 10 seconds |
| Service life | > 10000 times, > 800h |
| Rated air flow | 4 l/min |
| Maximum vacuum rate | -0.7 bar (-70 kPa) |
| Maximum lifting capacity | 150 kg (440lbs) |
| Dimensions | 200x200x90 mm |
| Net weight (with battery) | 1.2 kg (2.6 lbs) |
| Working temperature | 0-60°C (32-140°F) |
| Brand | Grabo |
|---|---|
| MPN | grabot1 |
| Best Seller | Yes |
| Recently Added | No |
| Size | 16" |
