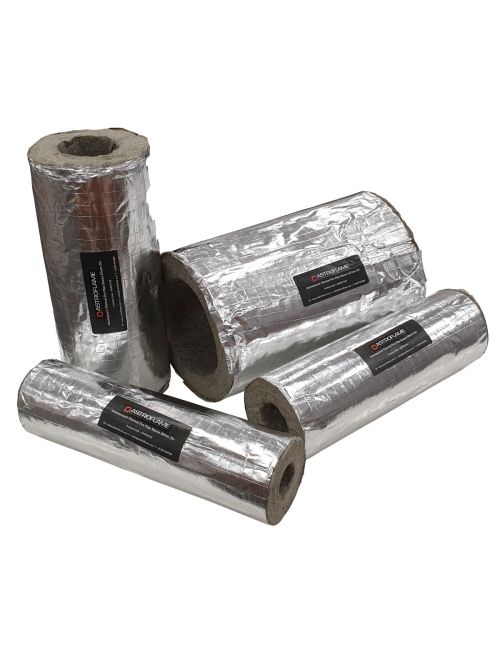

Astro CE Thermal Fire Pipe Sleeve 140mm

Astro CE Thermal Fire Pipe Sleeve

Size: 140mm

The Astro CE Thermal Fire Pipe Sleeve 140mm is a specialized fire protection device designed to maintain the integrity of fire-rated walls and floors when penetrated by plastic pipes. It is particularly critical in buildings where maintaining the fire rating of compartments is essential for safety and compliance with building regulations. Below is a detailed description of its features, specifications, installation process, and applications.

Features

1. High Fire Resistance: The Astro CE Thermal Fire Pipe Sleeve provides up to 240 minutes of fire resistance. It effectively prevents the spread of fire through plastic pipes that penetrate fire-rated walls and floors.

2. Intumescent Material: The sleeve is made from a high-performance intumescent material that expands significantly when exposed to heat. This expansion fills gaps and seals the penetration, effectively blocking the passage of fire and smoke.

3. Easy Installation: The sleeve is designed for ease of installation. It can be quickly fitted around the pipe and secured to the surrounding structure, ensuring minimal disruption to the existing fire-rated construction.

4. Versatility: This pipe sleeve is suitable for use with a variety of plastic pipes, including PVC, CPVC, PE, PP, and ABS pipes. It can accommodate pipes up to 140mm in diameter.

5. Compliance and Certification: The product complies with European standards for fire protection, including EN 1366-3 and EN 13501-2. It is CE marked, ensuring it meets stringent safety and performance requirements.

6. Durability: The sleeve is designed to withstand the rigors of building environments, maintaining its protective properties over the life of the building.

Specifications

• Diameter: Designed to fit pipes with a diameter of 140mm.
• Fire Rating: Up to 240 minutes (4 hours) of fire resistance.
• Expansion Ratio: Expands to many times its original thickness to seal the gap around the pipe.
• Material: High-performance intumescent material.
• Color: Typically available in red or black, but may vary based on manufacturer.

Installation Process

1. Preparation: Ensure the area around the pipe penetration is clean and free from debris. Measure the diameter of the pipe to confirm it matches the sleeve size.

2. Fitting the Sleeve: Open the sleeve and wrap it around the pipe, ensuring it fits snugly. For pipes already installed, the sleeve can be split to fit around the pipe and then re-secured.

3. Securing the Sleeve: Push the sleeve into the wall or floor opening until it is flush with the surface. Some sleeves may require fixing brackets or clamps to secure them in place.

4. Sealing the Edges: Use an appropriate fire-rated sealant around the edges of the sleeve to ensure a complete seal and to maintain the integrity of the fire barrier.

5. Inspection: After installation, inspect the sleeve to ensure it is properly fitted and secured. Check that there are no gaps between the sleeve and the pipe or the surrounding structure.

Applications

1. Commercial Buildings: Essential in office buildings, hotels, and shopping centers where maintaining fire compartmentation is critical.

2. Residential Buildings: Used in high-rise apartments and residential complexes to prevent fire spread between units.

3. Industrial Facilities: Provides fire protection in factories, warehouses, and other industrial settings where plastic pipes are used.

4. Healthcare Facilities: Crucial in hospitals and clinics to protect patients and staff by preventing the spread of fire through pipe penetrations.

Benefits

1. Enhanced Safety: Provides effective fire stopping, contributing to the overall safety of the building occupants.
2. Compliance: Helps building owners and managers comply with fire safety regulations and standards.
3. Easy Maintenance: Once installed, the sleeve requires minimal maintenance, ensuring long-term protection.
4. Cost-Effective: Reduces the need for extensive fire stopping measures, offering a cost-effective solution for maintaining fire compartmentation.

Conclusion

The Astro CE Thermal Fire Pipe Sleeve 140mm is a vital component in modern fire protection systems. Its ability to provide up to 240 minutes of fire resistance makes it an indispensable tool in preventing the spread of fire through plastic pipe penetrations. With its easy installation, versatility, and compliance with European fire safety standards, it is a reliable and effective solution for enhancing the fire safety of various types of buildings.
