| Add Your Review

£103.96

Ex VAT: £86.63

Stock Available

SKU# A8083

If you are planning to buy bulk quantities, contact us for discounted prices.

0330 1281212

[email protected]

Astro Pipe Closer-

200mm

Depth 75mm

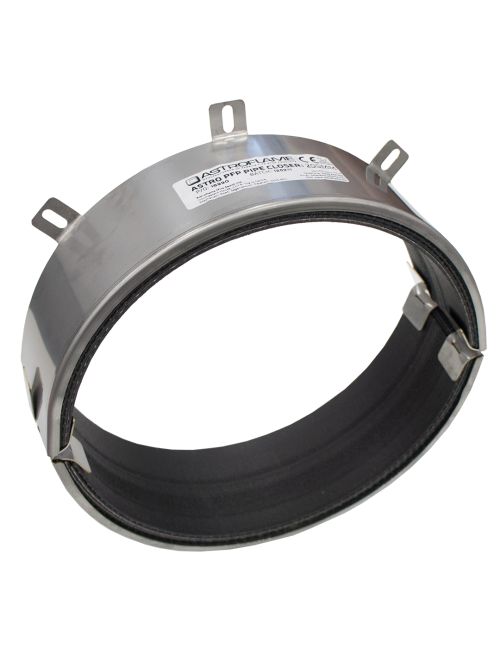

Astro PFP Pipe Closers are designed to maintain the fire resistance of rated walls and floors where continuous plastic pipes penetrate. Suitable for use in gypsum, masonry, and concrete walls, as well as concrete floors, each pipe closer features a Red/Silver coated circular steel shell that splits in two, allowing easy installation around service penetrations via a simple 'slide-lock' system.

The steel shell houses a graphite-based reactive material that activates under heat, sealing the openings left by the melting plastic pipe during a fire.

During testing, pipes can be left uncapped, capped inside the furnace, capped outside the furnace, or capped on both sides, depending on the intended application and installation environment. The configuration chosen influences the fire classification code, such as EI 60 C/U, indicating the pipe was capped inside the furnace and uncapped outside.

Our engineering judgment is based on EN 1366-3:2009 standards.

Astro Pipe Closer-

200mm

Depth 75mm

Astro PFP Pipe Closers are specifically designed to preserve the fire resistance integrity of rated walls and floors when these structures are penetrated by continuous plastic pipes. These pipe closers are versatile and can be employed in various construction types, including gypsum, masonry, and concrete walls, as well as concrete floors.

Key Features:

Steel Shell Construction:
- Each pipe closer features a robust circular steel shell with a Red/Silver coating. This shell is engineered to split into two halves, facilitating easy installation around service penetrations. The innovative 'slide-lock' system ensures a secure fit and seamless integration with existing structures.
Graphite-Based Reactive Material:
- Inside the steel shell, a graphite-based reactive material is embedded. This material is designed to respond to high temperatures by expanding and closing the gaps left by the melting plastic pipes during a fire. This reaction effectively restores the fire-resistance barrier, preventing the spread of flames and smoke.

Testing and Configuration:

When testing the performance of pipes with Astro PFP Pipe Closers, different capping configurations can be employed based on the intended application and installation environment:

Uncapped: The pipe is left open.
Capped Inside the Furnace: The pipe is sealed on the interior side of the testing furnace.
Capped Outside the Furnace: The pipe is sealed on the exterior side of the testing furnace.
Capped on Both Sides: The pipe is sealed on both the interior and exterior sides.

Fire Classification Codes:

The specific capping configuration chosen during testing is reflected in the fire classification code, which defines the approvals possible for the product. For example:

EI 60 C/U: This classification indicates that the pipe was capped inside the furnace (C) and left uncapped outside the furnace (U).

These codes are essential for understanding the conditions under which the pipe closer was tested and the level of fire resistance it provides.

Compliance and Standards:

Our engineering assessments and judgments are firmly rooted in compliance with EN 1366-3:2009, the European standard that specifies the method for testing the fire resistance of service installations.

Summary:

Astro PFP Pipe Closers offer a reliable solution for maintaining the fire resistance of walls and floors penetrated by plastic pipes. Their innovative design, combined with rigorous testing and adherence to standards, ensures optimal performance and safety in various construction environments.
