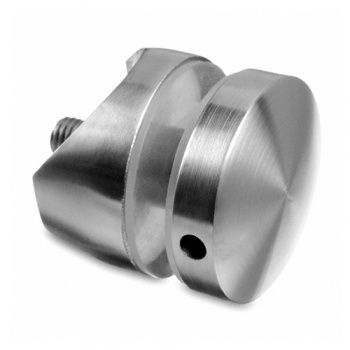

Q-Railing Short Glass Adapter - RadiusPost

SKU
D7450G
Grouped product items
Product Name Qty
Glass Adapter - Short Radius, Stainless Steel Grade 304, 42.4mm
£18.77 £15.64
Glass Adapter - Short Radius, Stainless Steel Grade 316, 42.4mm
£18.77 £15.64
Glass Adapter - Short Radius, Stainless Steel Grade 304, 48.3mm
£26.31 £21.92

Base Design: Radius
Glass Thickness: 8mm - 18mm
Diameter: 30mm
Length: 10mm - 20mm

Required Glass Cut Out: 20mm

This well designed glass adapter can be used for both exterior and interior installation. Along with being well designed to fit securely onto a radius surfaced balustrade pole this adapter can also be fitted to any cylindrical post.


Stainless Steel Grade 304 -  Interior only.
Stainless Steel Grade 316 -  Exterior and Interior


Recommended for.
• Supporting partitions
• Railings
• Windbreaks
• Displays
 Countless other projects

Dortech Direct Installation Guide

Short Radius Glass Adapter
                                                              20mm diameter hole in the glass is required for installation.

Stainless steel round shaped glass adapter for mounting onto 42.4mm or 48.3mm tubular surfaces.

Produced from 316 (exterior) grade stainless steel and to a brushed satin finish.

Will accommodate glass up to 18mm thickness.

Installation Instructions for Glass Clamps

Tools/Products Required:

<a
• Post or Fixing Surface
• Toughened Glass or Mono Glass
• Vacuum Cup or Glass Lifter
• Glass Cleaner

Step 1- Surface
Glass WILL need a 20mm diameter hold drilled into the glass for installation. Surfaces must be clean, dry, sound and free from contamination.

Step 2- Fixing the Glass Clamp
Remove the bottom half of the adapter, and secure this to your post or wall (this can be done by unscrewing the adapter anti-clockwise against the top half).

Step 3- Positioning the glass
Lift the sheet of glass using an appropriate glass lifter and position the glass in place. Whist doing so, the clamp that is separate, feed the rod through the pre-cut hole in the glass and secure the clamp back together. Don't worry about over tightening.


More Information
Brand Q-Railing
MPN No
ean No
Is New No
Handrail Length No
Interior or Exterior No
Clamp Finish No
Flat or Radius No
Post Diameter No
Toughened Glass Thickness No
Laminated Glass Thickness No
