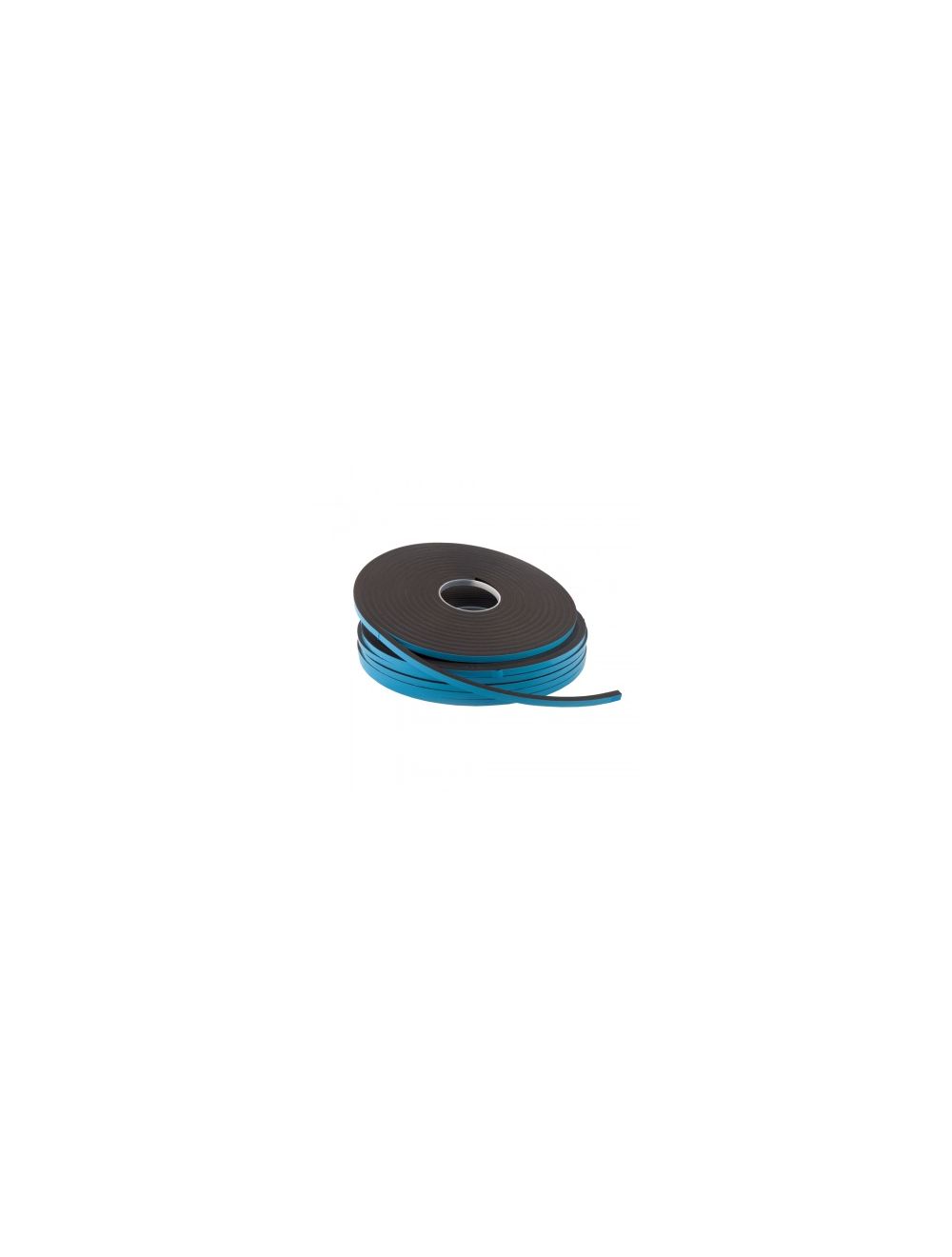

Structural Spacer Glazing Tape

SKU
A0253G
Grouped product items
Product Name Qty
Arbo Structural Spacer Tape, 6mm / 6mm, 15 Metres
£12.39 £10.32
Arbo Structural Spacer Tape, 6mm / 12mm, 15 Metres
£13.23 £11.02
Arbo Structural Spacer Tape, 9.5mm / 6mm, 7.5 Metres
£5.82 £4.85
Arbo Structural Spacer Tape, 9.5mm / 25mm, 7.5 Metres
£23.01 £19.17
Arbo Structural Spacer Tape, 8mm / 12mm, 7.5 Metres
£13.34 £11.12

Double sided adhesive on high density PVC Glazing Foam Tape

Can take up to 10 days for delivery


Structural glazing tape is used as a spacing element in structurally glazed fabrications. The Arbo structural glazing tape forms an effective short-term bond between the frame and the IG unit during assembly and creates a gap of the correct dimensions.

Approved for use with most structural silicones.

Colour: Black
Density: 300 kg/m³
Tensile Strength: 0.35 Mps min
Elongation: 150% min
Tear Strength: 2 kg/cm min
Compression Set: 10% max. 90-98% recovery

Water Absorption: 8% by volume
Cold Flexure: -30°C
Temperature Resistance:  -50°C to +60°C
Shore Hardness: 55-75
Resistance to Ageing: Excellent

Resistance to Chemicals: -
Acid: Good
Mineral Oil: Good
Alcohol: Good
Alkalis: Good
Petrol: Good
Soap & Detergents: Good

Compression required to achieve a positive waterseal: 20%

UV Light Resistance: Very Good
Water Resistance: Very Good

Adhesive: Modified acrylic
Coat weight: 90 gsm

Temperature resistance: -40°C + 160°C
Application temperature: >15°C

Lead Time: Approx 5 Days.

Application Instructions for SST Structural Spacer Tape

Surface preparation
1. Surfaces should be clean, dry and free from all contamination.
2. The surfaces should be cleaned using an appropriate cleaner.
3. Primers may be required on some substrates.

Application
1. Unwind the tape and apply the ‘open’ face directly to the frame.
2. Cut to the required length forming tight butt joints at the corners.
3. Press the tape firmly onto the surface by hand or by using a seam roller.
4. Remove the protective liner immediately before glazing.
5. Carefully position the IG unit onto the tape and apply pressure to consolidate the bond.
6. The structural silicone can now be applied.
